Module 1 Task 1

Task 1 - AVS Connectivity Options

AVS Connectivity Options

THIS IS FOR REFERENCE ONLY AS IT HAS BEEN PRECONFIGURED FOR THIS LAB.

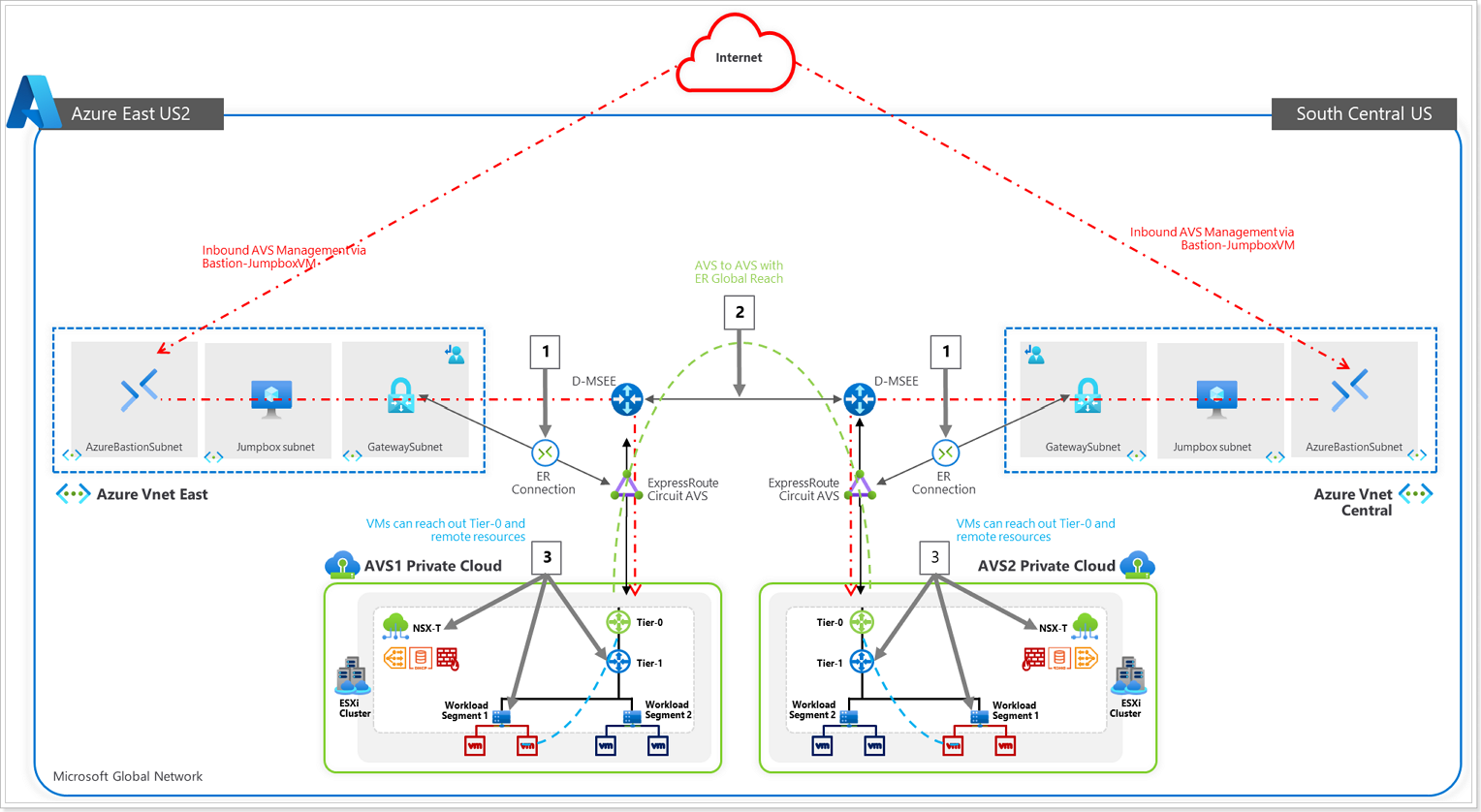

Section Overview

In this section you will create a connection between an existing, non-AVS, Virtual Network in Azure and the Azure VMware Solution environment. This allows the jumpbox virtual machine you created to manage key components in the VMware management plane such as vCenter, HCX, and NSX-T. You will also be able to access Virtual Machines deployed in AVS and allow those VMs to access resources deployed in the Hub or Spoke VNet’s, such as Private Endpoints and other Azure VMs or Services.

Section Overview

Summary: Generate a new Authorization Key in the AVS ExpressRoute settings, and then create a new Connection from the Virtual Network Gateway in the VNet where the JumpBox is connected to.

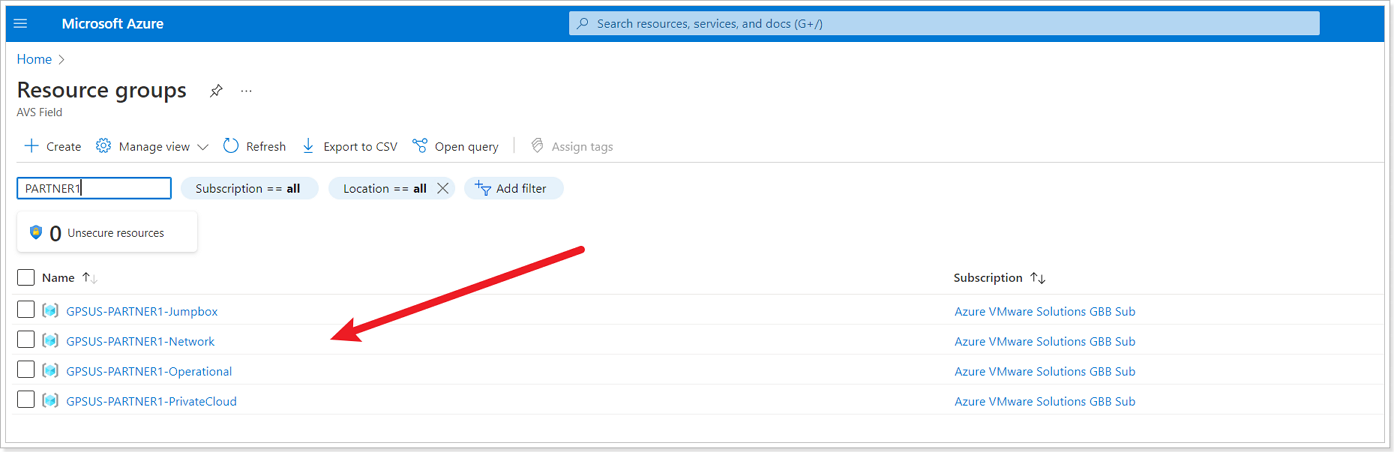

The diagram below shows the respective resource groups for your lab environment.

You will replace Name with Partner Name, for example: GPSUS-Name1-SDDC for partner XYZ would be GPSUS-XYZ1-SDDC.

Resource Groups

Option 1: Internal ExpressRoute Setup from AVS -> VNet

NOTE:

  • Since we already have a virtual network gateway, you’ll add a connection between it and your Azure VMware Solution private cloud.
  • The last step of this section is expected to fail, the Connection will be created but it will be in Failed state because another Connection to the same target already exists. This is expected behavior and you can ignore the error.

Step1: Request an ExpressRoute authorization key

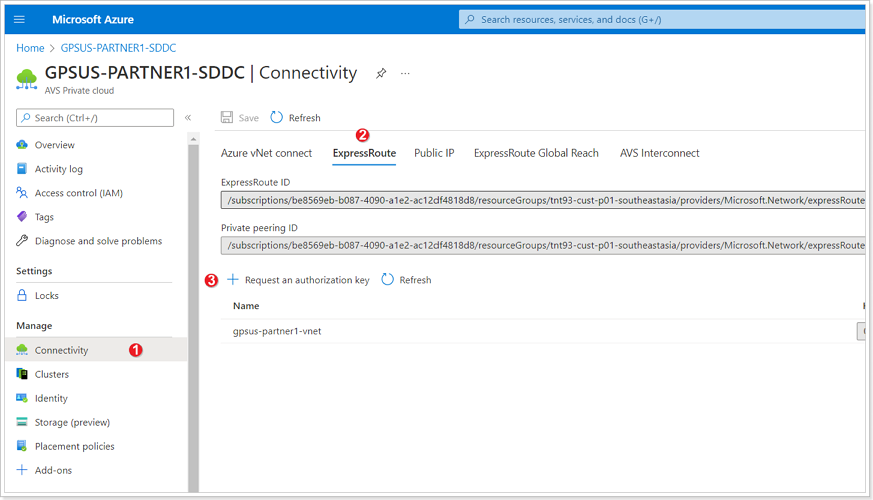

ER Authorization Key

In your AVS Private Cloud:

  1. Click Connectivity.
  2. Click ExpressRoute tab.
  3. Click + Request an authorization key.

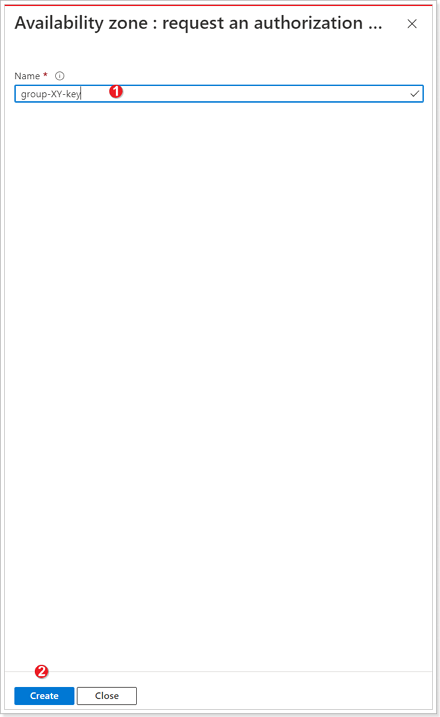

Step 2: Name Authorization Key

Request Authorization Key

  1. Give your authorization key a name: group-XY-key, where X is your group number, and Y is your participant number.
  2. Click Create. It may take about 30 seconds to create the key. Once created, the new key appears in the list of authorization keys for the private cloud. Copy the authorization key and ExpressRoute ID and keep it handy. You will need them to complete the peering. The authorization key disappears after some time, so copy it as soon as it appears.

Step 3: Create connection in VNet Gateway

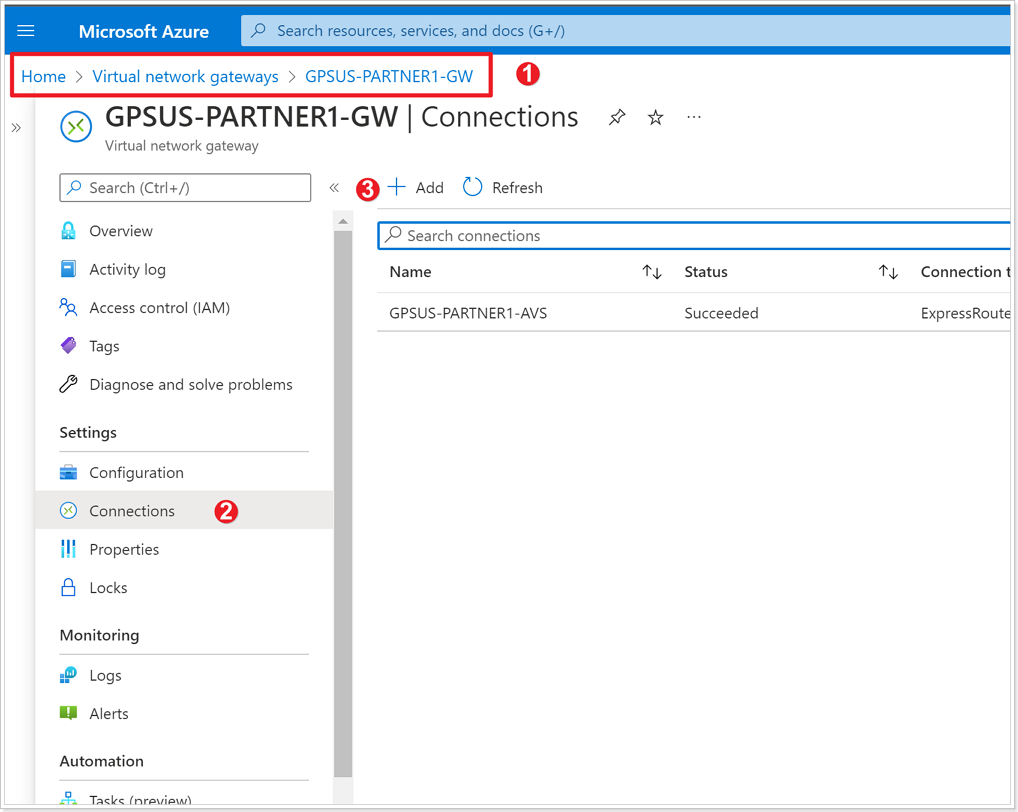

VNet Gateway Connection

  1. Navigate to the Virtual Network Gateway named GPSUS-Name#-Network where # is your group number.
  2. Click Connections.
  3. Click + Add.

Step 4: Establish VNet Gateway Setup

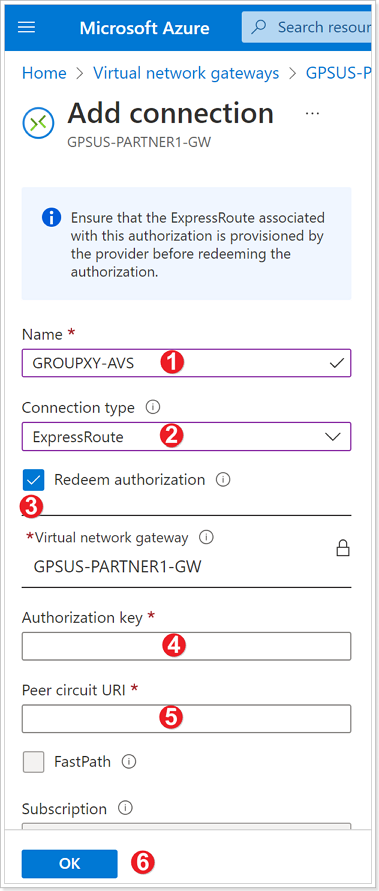

VNet Gateway connection setup

  1. Enter a Name for your connection. Use GROUPXY-AVS where X is your group number and Y is your participant number.

  2. For Connection type select ExpressRoute.

  3. Ensure the checkbox next to “Redeem authorization” is selected.

  4. Enter the Authorization key you copied earlier.

  5. For Peer circuit URI paste the ExpressRoute ID you copied earlier.

  6. Click OK.

    The connection between your ExpressRoute circuit and your Virtual Network is created.

    Reminder: It is expected that the connection is in Failed State after the creation, that is because another connection to the same target already exists. Next, delete the connection.

Step 5: Delete connection

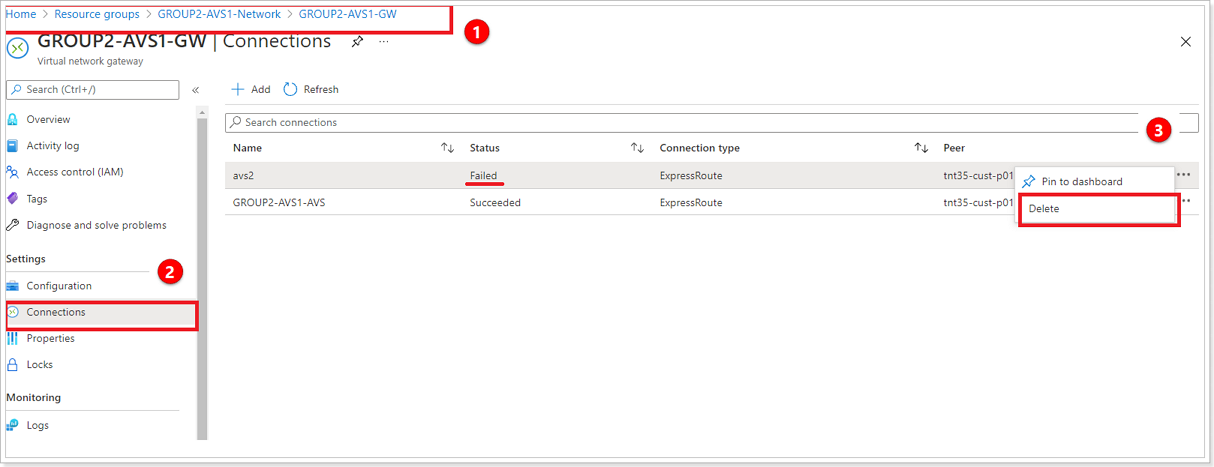

Delete connection

  1. Navigate to your Virtual Network Gateway named **GPSUS-NameX-GW where X is your group number.
  2. Click Connections.
  3. Select the 3 ellipses next to the connection with the status of Failed and select Delete.

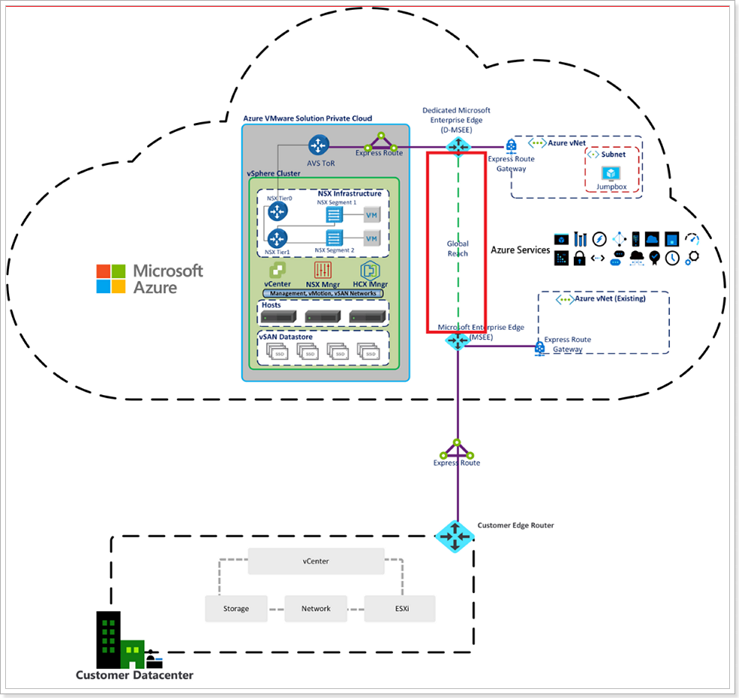

Option 2: ExpressRoute Global Reach Connection from AVS -> Customer’s on-premises ExpressRoute

ExpressRoute Global Reach connects your on-premises environment to your Azure VMware Solution private cloud. The ExpressRoute Global Reach connection is established between the private cloud ExpressRoute circuit and an existing ExpressRoute connection to your on-premises environments. Click here for more information.

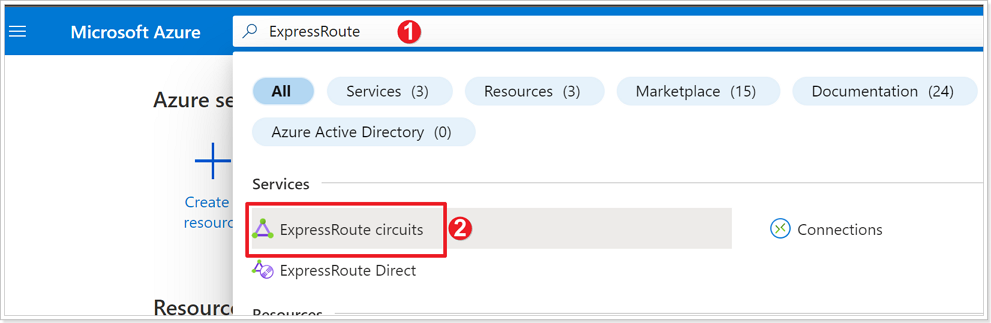

Step 1: ExpressRoute Circuits in Azure Portal

NOTE: There are no ExpressRoute circuits setup in this environment. These steps are informational only.

  1. In the Azure Portal search bar type ExpressRoute.
  2. Click ExpressRoute circuits.

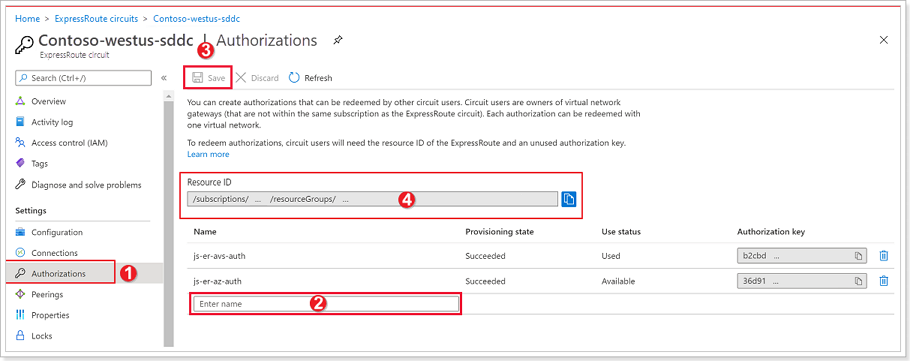

Step 2: Create ExpressRoute Authorization

  1. From the ExpressRoute circuits blade, click Authorizations.
  2. Give your authorization key a Name.
  3. Click Save. Copy the Authorization Key created and keep it handy.
  4. Also copy the Resource ID for the ExpressRoute circuit and keep it handy.

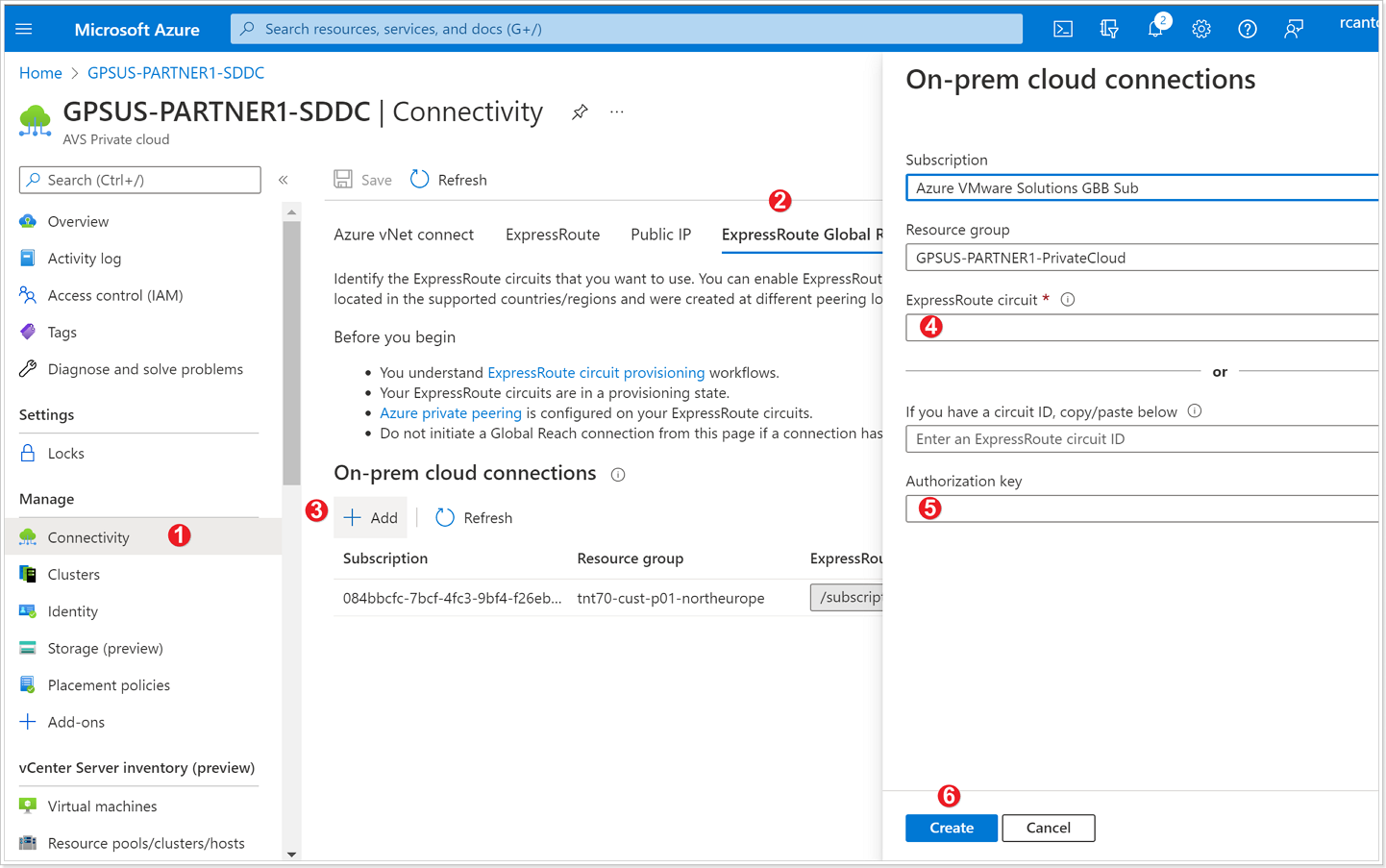

Step 3: Create Global Reach Connection in AVS

  1. From your AVS Private Cloud blade, click Connectivity.
  2. Click ExpressRoute Global Reach.
  3. Click + Add.
  4. In the ExpressRoute circuit box, paste the Resource ID copied in the previous step.
  5. Paste the Authorization Key created in the previous step.
  6. Click Create.

Option 3: AVS Interconnect

The AVS Interconnect feature lets you create a network connection between two or more Azure VMware Solution private clouds located in the same region. It creates a routing link between the management and workload networks of the private clouds to enable network communication between the clouds. Click here for more information.

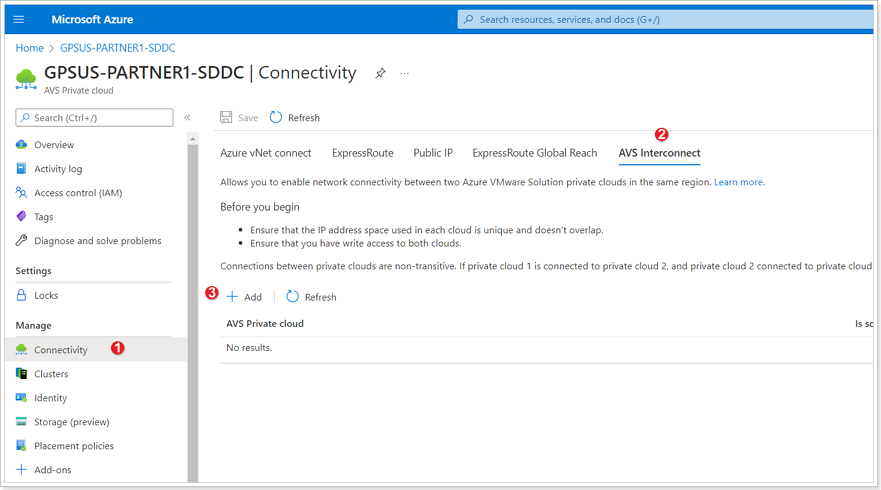

Step 1: Establish AVS Interconnect in your AVS SDDC

  1. In your AVS Private Cloud blade, click Connectivity.
  2. Click AVS Interconnect.
  3. Click + Add.

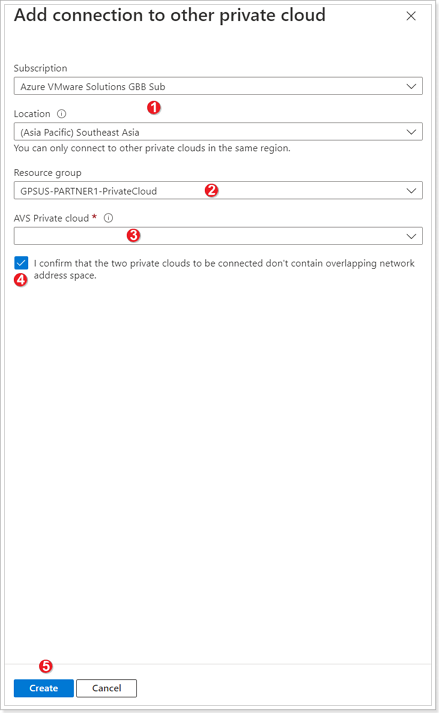

Step 2: Add connection to another private cloud

  1. Subscription and Location are automatically populated based on the values of your Private Cloud, ensure these are correct.
  2. Select the Resource group of the other Private Cloud you would like to connect to.
  3. Select the AVS Private cloud you wish to connect.
  4. Ensure the checkbox next to “I confirm that the two private clouds to be connected don’t contain overlapping network address space”.
  5. Click Create.

It takes a few minutes for the connection to complete. Once completed the networks found in both Private Clouds will be able to talk to each other. Feel free to perform this exercise if no one in your group has done it as there is a requirement to connect a second Private Cloud in order to perform the exercises in Module 3 (Site Recovery Manager).

Confirm access from Jumpbox

You can now validate access to your Azure VMware Solution components like vCenter and NSX-T from the Jumpbox you created.

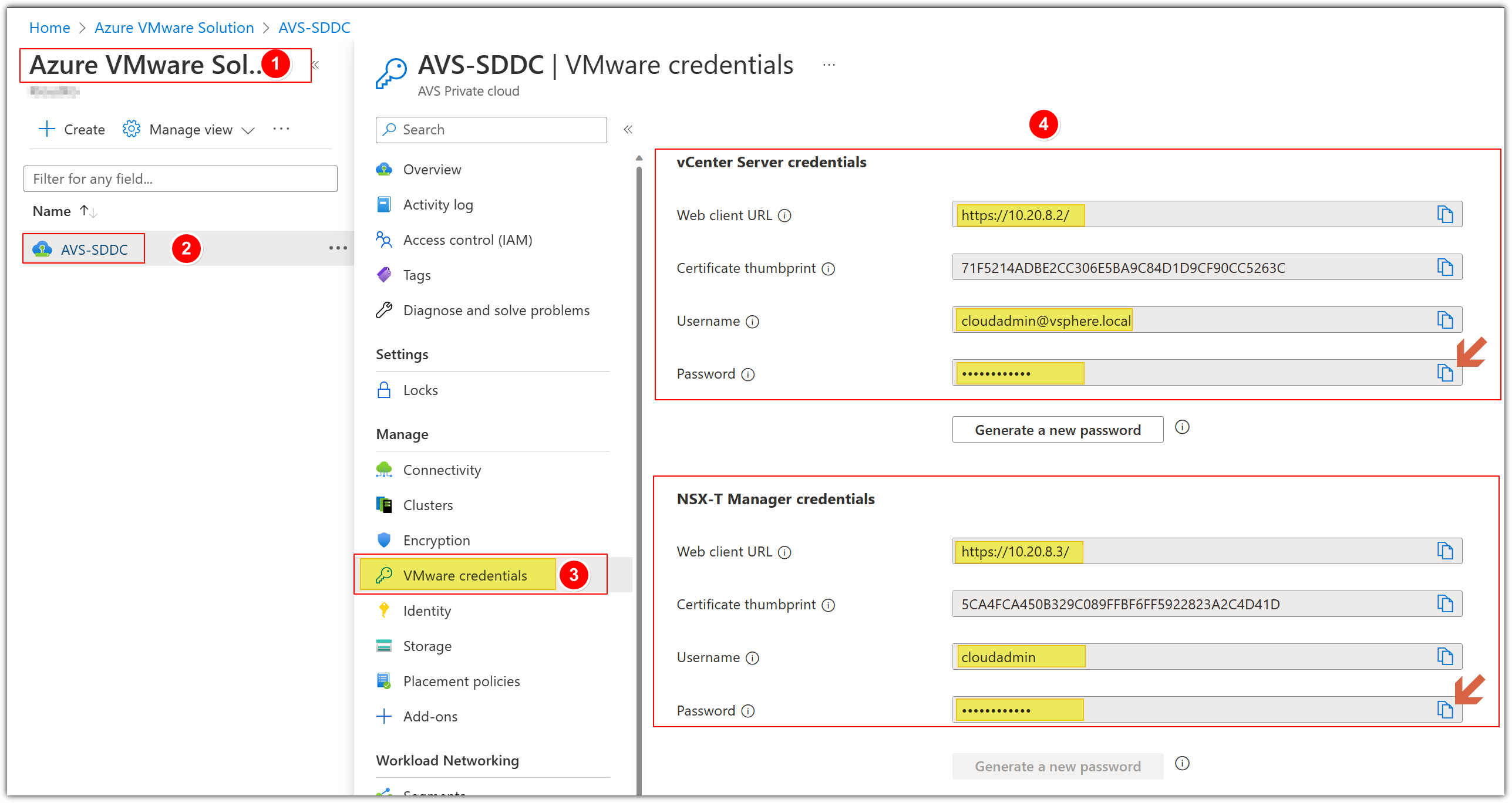

Step 1: Obtain AVS Login Credentials

  1. Navigate to the Azure VMware Solution blade associated with your group: GPSUS-Name#-SDDC.
  2. Click your assigned AVS SDDC.
  3. Click Identity.
  4. You will now see the Login Credentials for both vCenter and NSX-T. You will need these credentials for the next few steps. You do not need to copy the Certificate thumbprint.

    PLEASE DO NOT GENERATE A NEW PASSWORD.

Step 2: Access AVS from Jumpbox

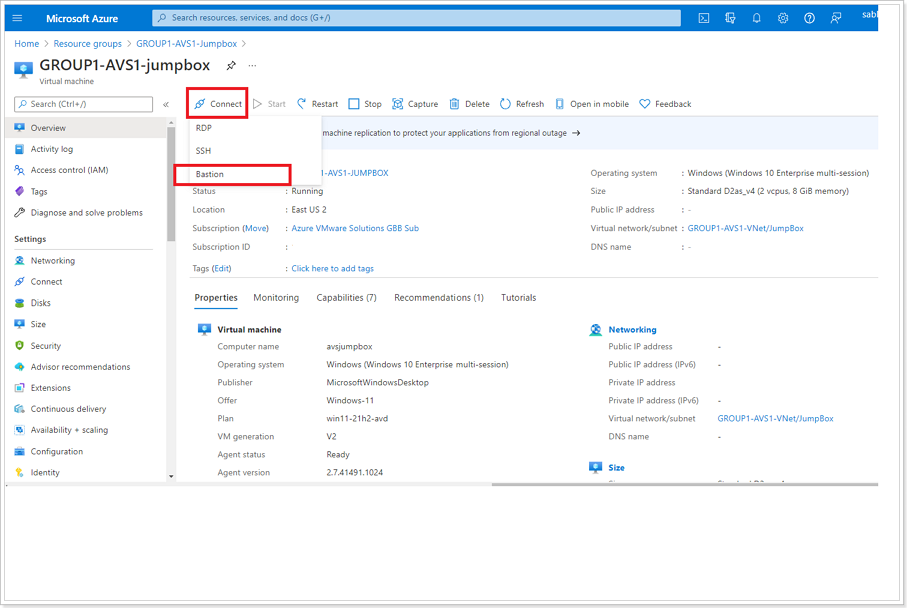

Click Connect and Bastion from the previously created Jumpbox blade.

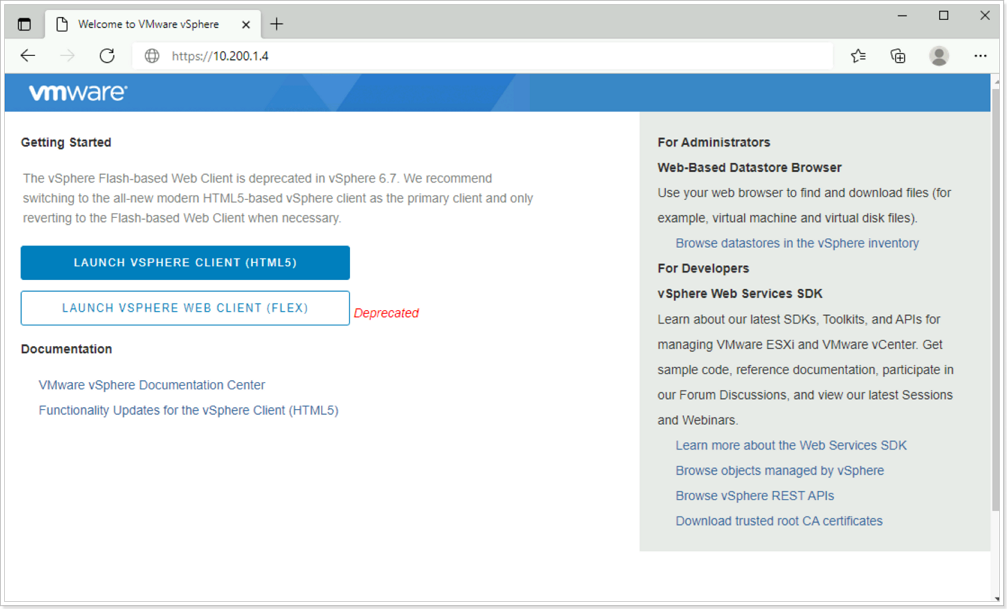

Once connected to your Jumpbox, open a browser and enter the IP Address for AVS vCenter located in a previous step. There might be a secure browser connection message. Click the advanced button and select the option to continue. Then click on LAUNCH VSPHERE CLIENT (HTML 5).

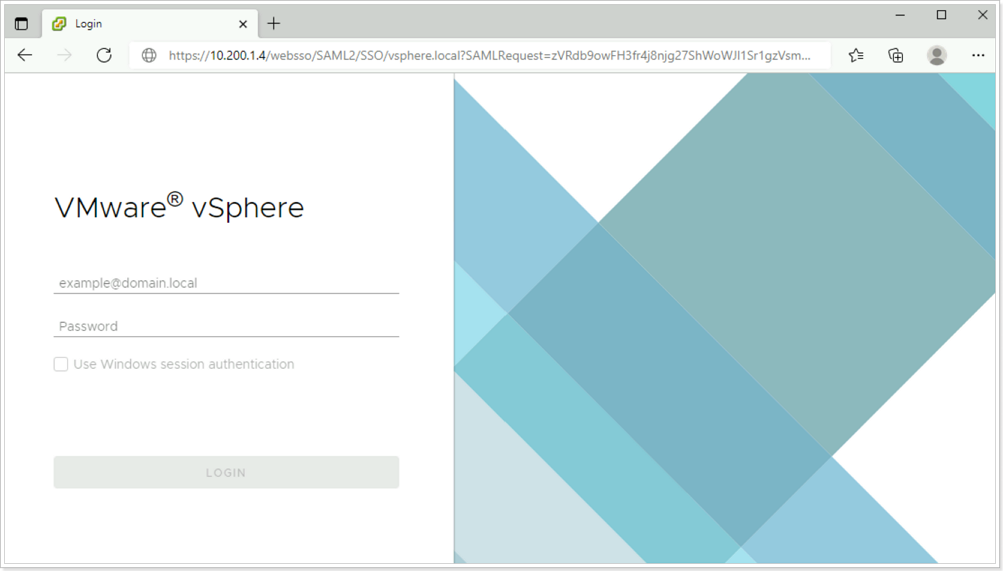

If the VMware vSphere login page launches successfully, then everything is working as expected.

You’ve now confirmed that you can access AVS from a remote environment

References

Tutorial - Configure networking for your VMware private cloud in Azure - Azure VMware Solution | Microsoft Docs
